Description

Product Overview

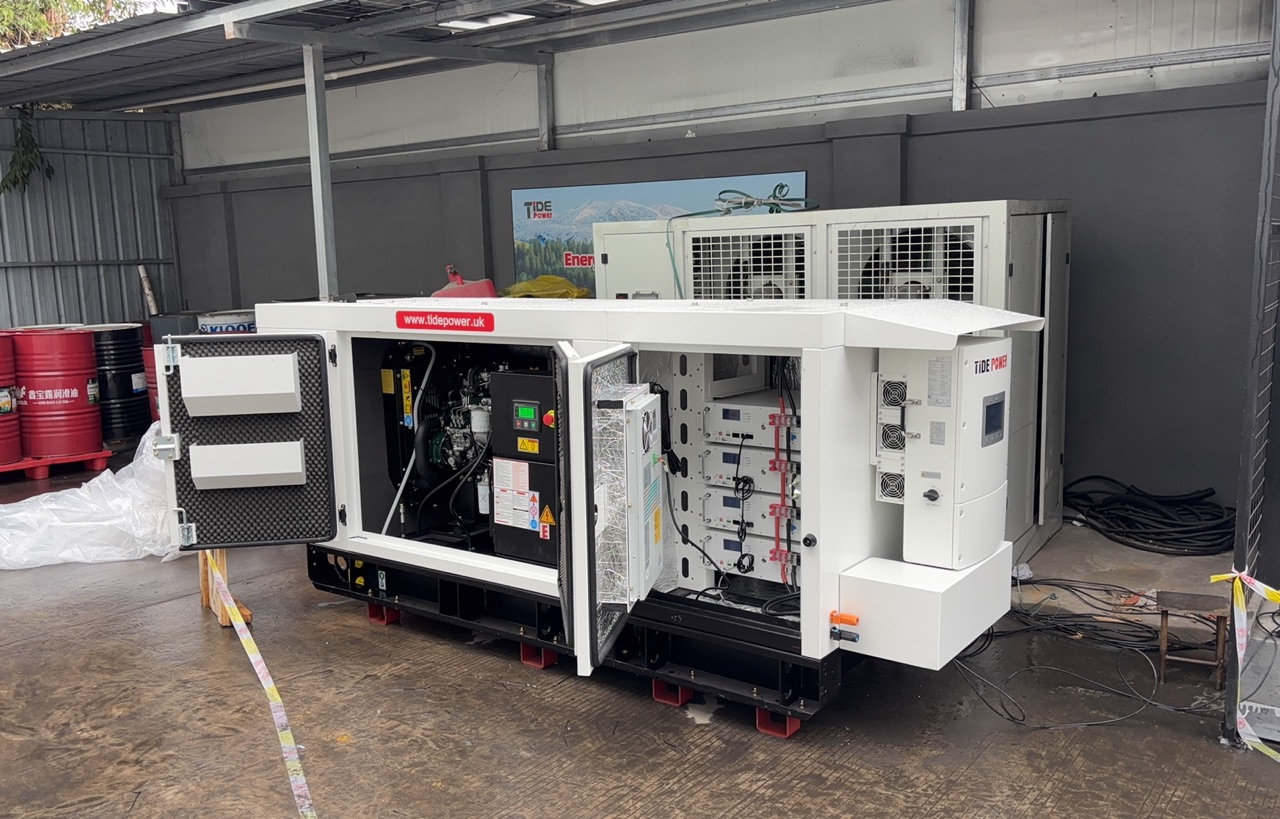

The TP-EH25-AC-DG13-P1 Hybrid Power Station (TPAC-25 Series) is an advanced all-in-one energy solution combining solar PV, battery energy storage (BESS), and diesel generator (DG) into a single integrated system. Designed for telecom base stations, remote infrastructure, and off-grid industrial applications, it ensures uninterrupted, intelligent, and cost-efficient power supply in even the harshest environments.

This hybrid system is engineered to address unreliable grid conditions, fuel dependency challenges, and rising operational costs across Africa—making it ideal for deployments in remote regions such as Turkana, Northern Kenya, and large infrastructure projects.

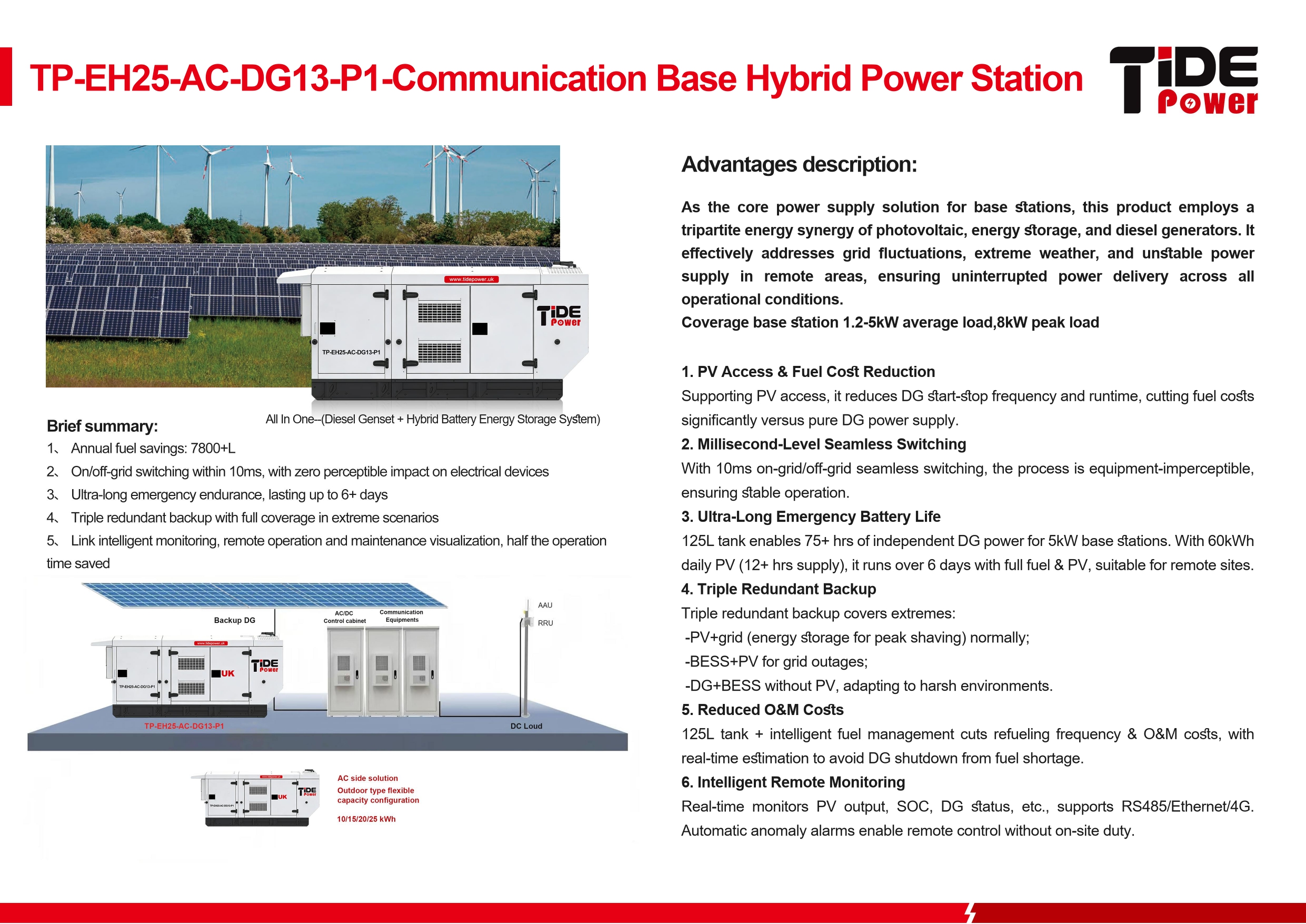

According to your brochure, the system supports 1.2–5 kW average loads (up to 8 kW peak), making it perfect for telecom towers and remote installations.

Key Advantages

1. PV + BESS + Diesel Integration

The TPAC-25 uses a tripartite energy system combining:

• Solar PV for daytime generation
• Battery storage for night and backup
• Diesel generator for redundancy

This ensures continuous operation under all conditions.

2. Massive Fuel Cost Savings

By reducing diesel generator runtime, the system significantly cuts fuel consumption.

• Reduced DG start/stop cycles
• Lower operational expenditure
• Annual fuel savings up to 7,800+ liters

3. Seamless Power Switching (<10ms)

The hybrid inverter enables millisecond-level switching between grid, battery, and generator, ensuring:

• Zero interruption to critical loads
• Stable telecom and industrial operations

4. Ultra-Long Backup Autonomy

• 125L fuel tank → 75+ hours DG runtime
• Solar + battery → 6+ days operation under optimal conditions

This makes it ideal for off-grid and remote deployments.

5. Triple Redundant Power Architecture

The system automatically adapts between:

• PV + Grid (normal operation)
• PV + BESS (grid outage)
• DG + BESS (extreme conditions)

Ensuring zero downtime across all scenarios.

6. Intelligent Remote Monitoring

Supports:

• RS485 / Ethernet / 4G communication
• Real-time monitoring (SOC, PV output, DG status)
• Remote fault diagnostics and control

Reducing site visits and maintenance costs.

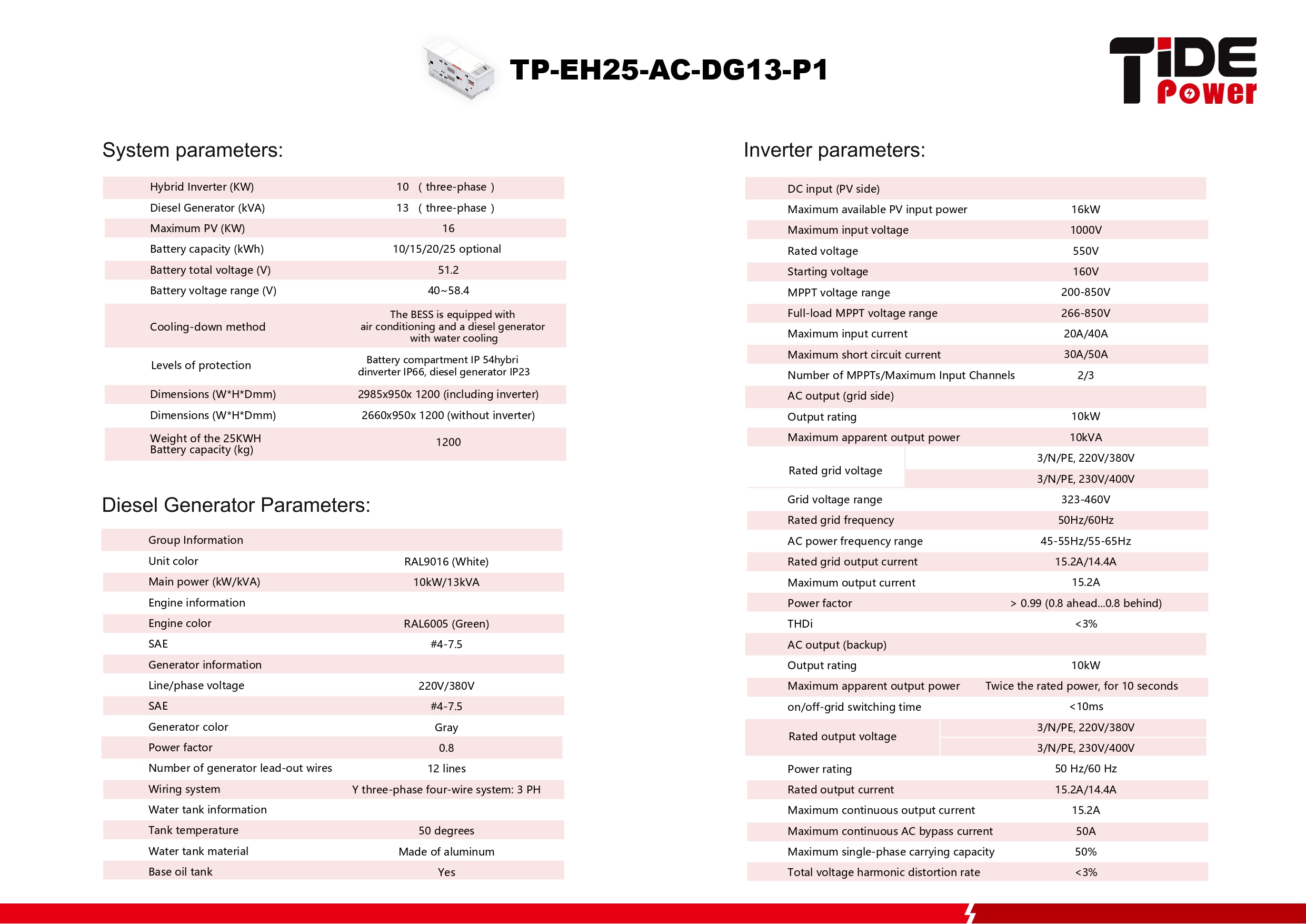

Technical Specifications

Core System

• Hybrid Inverter: 10 kW (3-phase)
• Diesel Generator: 13 kVA
• Maximum PV Input: 16 kW
• Battery Capacity: 10 / 15 / 20 / 25 kWh (expandable)
• Battery Voltage: 51.2 V
• Voltage Range: 40 – 58.4 V

PV Input (DC Side)

• Max Voltage: 1000 V
• MPPT Range: 200 – 850 V
• MPPT Channels: 2–3
• Max Input Current: 20A / 40A

AC Output (Grid Side)

• Output Power: 10 kW / 10 kVA
• Voltage: 220/380V or 230/400V (3-phase)
• Frequency: 50/60 Hz
• Power Factor: >0.99
• THDi: <3%

System Design

• Cooling: Air conditioning + water-cooled DG
• Protection:
  • Battery: IP54
  • Inverter: IP66
  • Generator: IP23
• Dimensions:
  • With inverter: 2985 × 950 × 1200 mm
• Weight (25 kWh): ~1200 kg

Applications

This hybrid power station is ideal for:

• 📡 Telecom Base Stations
• ⛏ Mining & Remote Industrial Sites
• 🛣 Infrastructure & Road Projects
• 🏕 Remote Camps & Off-Grid Facilities
• 🚨 Disaster Relief & Emergency Power
• 🌍 Rural Electrification Projects

Why This Product is Perfect for Kenya

For markets like Kenya and East Africa where power reliability is inconsistent, the TPAC-25 provides:

• Reduced diesel dependency (huge cost savings)
• Reliable backup for mission-critical sites
• Fast deployment in remote areas
• Scalable energy solution for growing demand
